R1100GS (259E) | Vehicle Trim
PAINTED PARTS, 716 NACHT-SCHWARZ

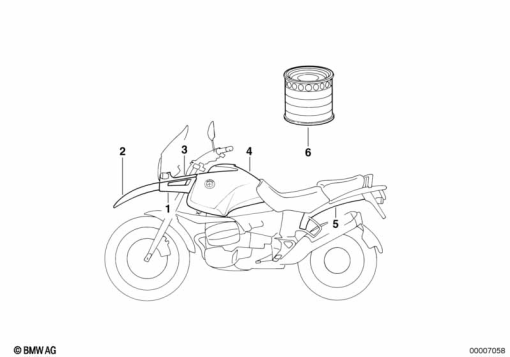

Diagram #51_0178 | 13 parts | 2 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 313 895 | LATERAL TRIM PANEL LEFT - SILVER (from 09/95) | 1 | |
| 1 | 46 63 2 313 896 | LATERAL TRIM PANEL RIGHT - SILVER (from 09/95) | 1 | |
| 2 | 46 61 2 325 051 | UPPER MUDGUARD - NIGHT BLACK (from 09/95) | 1 | |
| 3 | 46 63 2 324 244 | COVER,TOP - SILVER (from 09/95) | 1 | |
| 4 | 16 11 2 325 261 | FUEL TANK - NIGHT BLACK (09/95 to 11/95) | 1 | |
| 4 | 16 11 2 325 021 | SHEET-STEEL FUEL TANK - NIGHT BLACK (09/95 to 11/95) | 1 | |
| 1 | 46 63 2 324 873 | SUPPORT F LEFT SHEET-STEEL FUEL TANK (09/95 to 11/95) | 1 | |
| 1 | 46 63 2 324 874 | SUPPORT F RIGHT SHEET-STEEL FUEL TANK (09/95 to 11/95) | 1 | |
| 4 | 16 11 2 325 021 | SHEET-STEEL FUEL TANK - NIGHT BLACK (from 11/95) | 1 | |
| 5 | 46 62 2 325 053 | REAR MUDGUARD - NIGHT BLACK (from 09/95) | 1 | |
| 6 | 51 91 0 145 923 | BASE PAINT, TWO-COAT BLACK II - U103/500ML (from 09/95) | 1 | |
| 6 | 51 91 0 301 947 | SET: TOUCH-UP STICK BLACK - 2X12ML 668/C2W (from 09/95) | 1 | |
| 6 | 51915A55B65 | SET: SPRAY PAINT SOLID BLACK - 2X150MLU668/C2W (from 09/95) | 1 |
