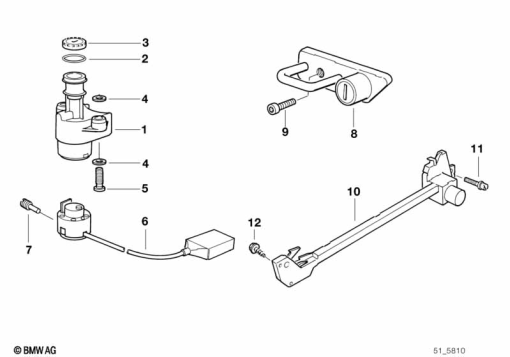

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 25 2 313 183 | STEERING LOCK HOUSING | - | |
| 2 | 51 25 2 313 185 | O-RING | - | |
| 3 | 51 25 2 313 184 | 51 25 2 313 184 | - | |
| 4 | 07 11 9 904 826 | WASHER - 8-200-ZNS3 | - | |
| 5 | 51 25 7 711 811 | LOCK SCREW - M8X31-MK-ZNS3 | - | |
| 6 | 61 32 2 306 743 | IGNITION/LIGHT SWITCH - L=600MM | - | |
31 32 2 305 742 | can be used to replace 743, wiring is longerAlternative for position 6 | - | ||
| 7 | 51 25 9 062 821 | STUD BOLT - M3X5 | - | |
| 8 | 51 25 2 313 472 | HELMET LOCK | - | |
| 9 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - | |
| 10 | 51 25 2 313 405 | DUALSEAT LOCKING MECHANISM | - | |
| 11 | 46 63 2 322 460 | FILLISTER HEAD WITH WASHER - M6X12-Z3-8.8 | - | |
| 12 | 13 90 1 718 262 | SCREW - K50X18 | - |
