R1100GS (259E) | Vehicle Trim
PAINTED PARTS 713 KALAHARIGELB

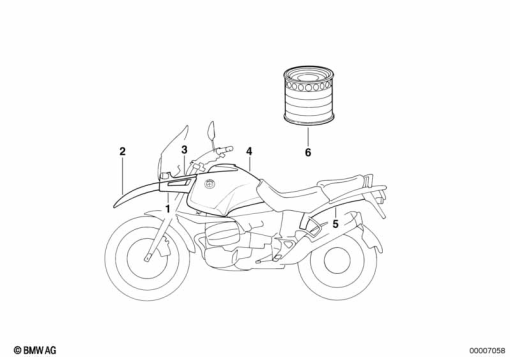

Diagram #51_0179 | 10 parts | 3 available in shop
100%
Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 313 895 | LATERAL TRIM PANEL LEFT - SILVER (from 09/95) | 1 | |
| 1 | 46 63 2 313 896 | LATERAL TRIM PANEL RIGHT - SILVER (from 09/95) | 1 | |
| 2 | 46 61 2 325 042 | UPPER MUDGUARD - KALAHARIYELLOW (from 09/95) | 1 | |
| 3 | 46 63 2 324 244 | COVER,TOP - SILVER (from 09/95) | 1 | |
| 4 | 16 11 2 324 989 | SHEET-STEEL FUEL TANK - KALAHARIYELLOW (09/95 to 11/95) | 1 | |
| 4 | 16 11 2 325 260 | FUEL TANK - KALAHARIYELLOW (09/95 to 11/95) | 1 | |
| 4 | 16 11 2 324 989 | SHEET-STEEL FUEL TANK - KALAHARIYELLOW (from 11/95) | 1 | |
| 5 | 46 62 2 313 387 | WHEEL COVER, PRIMED, REAR (from 09/95) | 1 | |
| 6 | 51 91 0 144 589 | TWO STAGE TOUCH UP SET KALAHARIYELLOW - 384 (from 09/95) | 1 | |
| 6 | 51 91 2 325 057 | TWO STAGE SPRAY SET KALAHARIYELLOW - 384 (from 09/95) | 1 |
