R1100GS (259E) | Vehicle Trim
PAINTED PARTS 658 MARRAKESCHROT

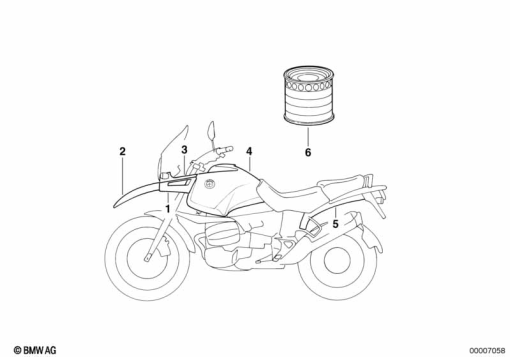

Diagram #51_0180 | 13 parts | 2 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 313 895 | LATERAL TRIM PANEL LEFT - SILVER (to 08/98) | 1 | |
| 1 | 46 63 2 313 896 | LATERAL TRIM PANEL RIGHT - SILVER (to 08/98) | 1 | |
| 2 | 46 61 2 324 236 | UPPER MUDGUARD - MARRAKESCHROT (to 08/98) | 1 | |
| 3 | 46 63 2 324 244 | COVER,TOP - SILVER (to 08/98) | 1 | |
| 4 | 16 11 2 324 228 | FUEL TANK - MARRAKESCHROT (to 11/95) | 1 | |
| 4 | 16 11 2 324 988 | SHEET-STEEL FUEL TANK - MARRAKESCHROT (to 11/95) | 1 | |
| 1 | 46 63 2 324 873 | SUPPORT F LEFT SHEET-STEEL FUEL TANK (to 11/95) | 1 | |
| 1 | 46 63 2 324 874 | SUPPORT F RIGHT SHEET-STEEL FUEL TANK (to 11/95) | 1 | |
| 4 | 16 11 2 324 988 | SHEET-STEEL FUEL TANK - MARRAKESCHROT (11/95 to 08/98) | 1 | |
| 5 | 46 62 2 324 240 | REAR MUDGUARD - MARRAKESCHROT (to 08/98) | 1 | |
| 6 | 51 91 0 142 136 | TOUCH UP PENCIL MARRAKESCHROT - 222 (to 08/98) | 1 | |
| 6 | 51 91 0 146 153 | BASE PAINT, TWO-COAT MARRAKESCHROT - 500ML 222 (to 08/98) | 1 | |
| 6 | 51 91 2 307 053 | SPRAY MARRAKESCHROT - 222 (to 08/98) | 1 |
