R1100GS (259E) | Vehicle Trim
PAINTED PARTS 642 ALPINWEISS

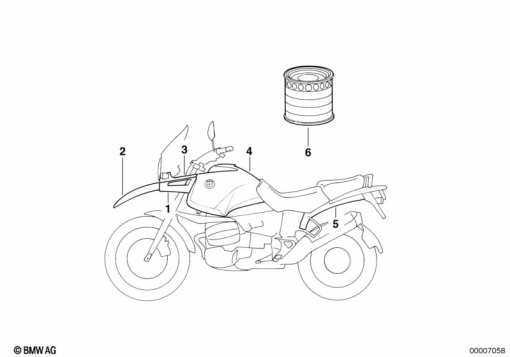

Diagram #51_0181 | 11 parts | 2 available in shop
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 313 895 | LATERAL TRIM PANEL LEFT - SILVER (to 08/95) | 1 | |
| 1 | 46 63 2 313 896 | LATERAL TRIM PANEL RIGHT - SILVER (to 08/95) | 1 | |
| 2 | 46 61 2 324 237 | UPPER MUDGUARD - ALPINWHITE (to 08/95) | 1 | |
| 3 | 46 63 2 324 244 | COVER,TOP - SILVER (to 08/95) | 1 | |
| 4 | 16 11 2 324 229 | FUEL TANK - ALPINWHITE (to 08/95) | 1 | |
| 4 | 16 11 2 325 429 | SHEET-STEEL FUEL TANK - ALPINWHITE (to 08/95) | 1 | |
| 1 | 46 63 2 324 873 | SUPPORT F LEFT SHEET-STEEL FUEL TANK (to 08/95) | 1 | |
| 1 | 46 63 2 324 874 | SUPPORT F RIGHT SHEET-STEEL FUEL TANK (to 08/95) | 1 | |
| 5 | 46 62 2 324 241 | REAR MUDGUARD - ALPINWHITE (to 08/95) | 1 | |
| 6 | 51 91 0 302 270 | SET: TOUCH UP PENCIL SETE ALPINWHITE - 2X12ML 146 (to 08/95) | 1 | |
| 6 | 51 91 2 407 535 | SET: SPRAY-PAINT ALPINWHITE III UNICOLOR - 2X150ML 146 (to 08/95) | 1 |
