R1100GS (259E) | Vehicle Trim
PAINTED PARTS 640 AVUSSCHWARZ

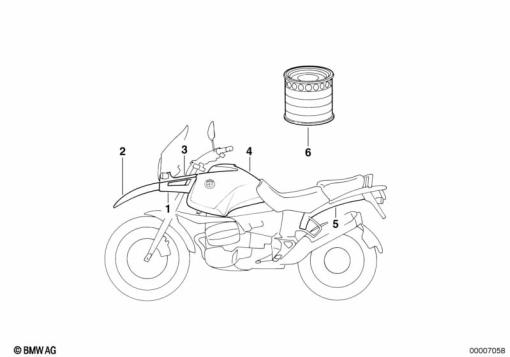

Diagram #51_0182 | 9 parts | 2 available in shop
100%
Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 313 895 | LATERAL TRIM PANEL LEFT - SILVER (to 08/95) | 1 | |
| 1 | 46 63 2 313 896 | LATERAL TRIM PANEL RIGHT - SILVER (to 08/95) | 1 | |
| 2 | 46 61 2 324 238 | UPPER MUDGUARD - AVUSBLACK (to 08/95) | 1 | |
| 3 | 46 63 2 324 244 | COVER,TOP - SILVER (to 08/95) | 1 | |
| 4 | 16 11 2 324 230 | FUEL TANK - AVUSBLACK (to 08/95) | 1 | |
| 5 | 46 62 2 324 242 | REAR MUDGUARD - AVUSBLACK (to 08/95) | 1 | |
| 6 | 51 91 0 302 284 | SET: TOUCH-UP STICK BLACK - 2 X 12ML 086 (to 08/95) | 1 | |
| 6 | 51 91 1 052 618 | HS ACRYLIC PAINT BLACK - 1000ML 086 (to 08/95) | 1 | |
| 6 | 51 91 2 407 540 | SET: SPRAY PAINT SOLID BLACK - 2X150ML 086 (to 08/95) | 1 |
