R1100GS (259E) | Transmission

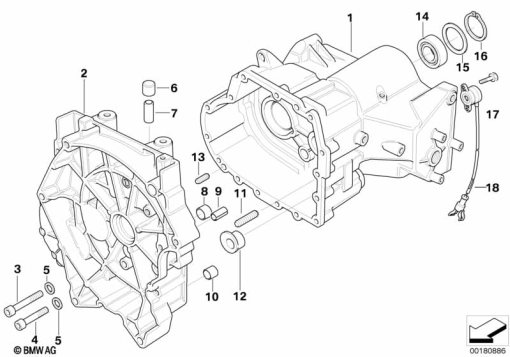

TRANSMISSION HOUSING/MOUNTING PARTS
Diagram #23_0285 | 30 parts | 3 available in shop
100%
Parts List (30)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 1 341 298 | TRANSMISSION HOUSING, SILVER (to 04/96) | 1 | |
| 1 | 23 11 1 340 315 | TRANSMISSION HOUSING, BLACK (to 04/96) | 1 | |
| 1 | 23 00 2 325 218 | TRANSMISSION HOUSING,BLACK,CLEAN BEARING (from 04/96) | 1 | |
| 1 | 23 10 2 325 217 | TRANSMISSION HOUS.,SILVER,CLEAN BEARING (from 04/96) | 1 | |
| 2 | 23 00 1 341 312 | SILVER HOUSING COVER (to 04/96) | 1 | |
| 2 | 23 11 1 340 313 | HOUSING COVER BLACK (to 04/96) | 1 | |
| 2 | 23 00 2 325 220 | HOUSING COVER, SILVER, CLEAN BEARING (from 04/96) | 1 | |
| 2 | 23 00 2 325 221 | HOUSING COVER, BLACK, CLEAN BEARING (from 04/96) | 1 | |
| 3 | 07 11 9 903 008 | FILLISTER-HEAD SCREW - M6X65-8.8-ZNS3 | 1 | |
| 4 | 07 11 9 919 930 | FILLISTER-HEAD SCREW - M6X50-8.8-ZNS | 1 | |
| 5 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 5 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/90) | 1 | |
| 5 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 5 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | 1 | |
| 6 | 23 11 1 451 549 | 23 11 1 451 549 | 1 | |
| 7 | 23 11 1 341 615 | SLEEVE | 1 | |
| 8 | 23 11 1 451 135 | BUSH | 1 | |
| 9 | 23 11 1 451 013 | BUSH | 1 | |
| 10 | 23 11 1 451 137 | BUSH FOR SELECTOR ROD | 1 | |
| 11 | 07 11 9 900 830 | DOWEL PIN - 6X40 | 1 | |
| 12 | 23 12 1 340 325 | BEARING BUSH FOR SELECTOR ROD | 1 | |
| 13 | 07 11 9 942 526 | DOWEL PIN - 6X24 | 1 | |
| 14 | 23 12 1 340 327 | GROOVED BALL BEARING - 12X28X8 | 1 | |
| 15 | 23 21 1 341 739 | SUPPORT - 20X28X2 | 1 | |
| 16 | 23 21 1 341 738 | LOCK RING - 28X1,2 | 1 | |
| 16 | 23 21 1 341 737 | LOCK RING - 28X1,3 | 1 | |
| 16 | 23 21 1 341 736 | LOCK RING - 28X1,4 | 1 | |
| 16 | 23 21 1 341 735 | LOCK RING - 28X1,5 | 1 | |
| 17 | 07 11 9 913 097 | HEX BOLT - M4X25 8.8ZN | 1 | |
| 18 | 61 31 2 306 519 | GEAR POSITION INDICATOR SWITCH | 1 |
