R1100GS (259E) | Transmission

GEARBOX OIL SEAL

Diagram #23_0284 | 4 parts

100%

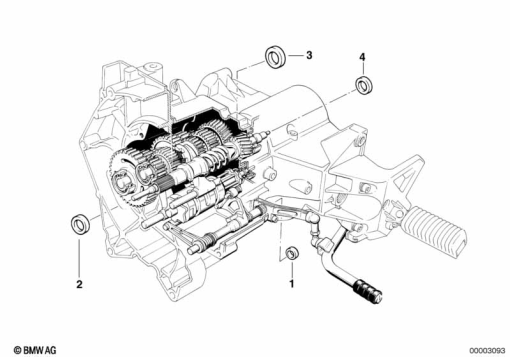

R1100GS (259E) GEARBOX OIL SEAL exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
23 12 2 330 139
SHAFT SEAL - 14X22X51
2
23 12 1 340 331
SHAFT SEAL - 22X35X61
3
23 12 2 330 135
SHAFT SEAL - 25X40X61
4
23 12 7 656 018
SHAFT SEAL - 20X35X51
