R1100GS (259E) | Transmission

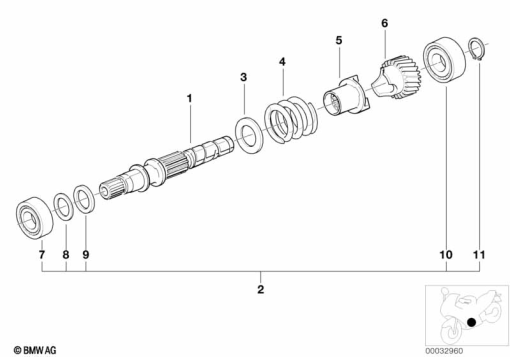

5-SPEED TRANS. DRIVE SHAFT M 93, M 94
Diagram #23_0753 | 19 parts | 2 available in shop
100%
Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 21 2 345 512 | DRIVE SHAFT - M93/94 | 1 | |
| 2 | 23 00 2 325 604 | SET: REPAIR KIT F FINAL DRIVE SHAFT BEARING - 25(20)X52X15 | 1 | |
| 3 | 23 21 1 340 794 | WASHER - 28X44X3 | 1 | |
| 4 | 23 21 2 331 066 | COMPRESSION SPRING | 1 | |
| 5 | 23 21 1 340 796 | THRUST ADAPTER | 1 | |
| 6 | 23 21 1 340 799 | GEAR WHEEL - M 93/Z=22 | 1 | |
| 6 | 23 21 2 345 502 | GEAR WHEEL - M 94/Z=20 | 1 | |
| 7 | 23 12 2 325 518 | CLEAN BEARING GROOVED BALL BEARING - 25X52X15 | 1 | |
| 8 | 23 11 1 340 367 | SHIM - 20X28X0,50 | 1 | |
| 9 | 23 11 1 340 338 | SHIM - 42X52X0,30 | 1 | |
| 9 | 23 11 1 340 339 | SHIM - 42X52X0,40 | 1 | |
| 9 | 23 11 1 340 340 | SHIM - 42X52X0,50 | 1 | |
| 9 | 23 11 1 341 427 | SHIM - 42X52X0,35 | 1 | |
| 9 | 23 11 1 341 428 | SHIM - 42X52X0,45 | 1 | |
| 9 | 23 11 1 341 429 | SHIM - 42X52X0,55 | 1 | |
| 10 | 23 12 7 709 867 | CLEAN BEARING GROOVED BALL BEARING - 20X52X15 | 1 | |
| 11 | 23 00 2 325 246 | LOCK RING - 20X1,85 | 1 | |
| 11 | 23 00 2 325 247 | LOCK RING - 20X1,95 | 1 | |
| 11 | 23 12 1 340 807 | LOCK RING - 20X1,75 | 1 |
