R1100GS (259E) | Transmission

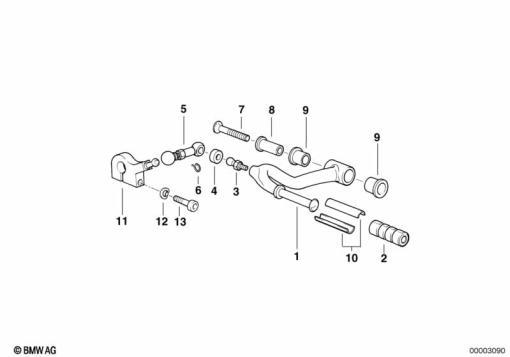

EXTERNAL GEARSHIFT PARTS/SHIFT LEVER
Diagram #23_0280 | 17 parts | 2 available in shop
100%
Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 41 1 341 628 | SHIFT LEVER | 1 | |
| 2 | 23 41 7 680 761 | PAD FOR FOOT-OPERATED SHIFT LEVER | 1 | |
| 3 | 07 11 9 901 736 | BALL PIN | 1 | |
| 4 | 23 41 7 650 149 | PLASTIC BUSH | 1 | |
| 5 | 23 41 1 341 676 | SELECTOR ROD - L=110MM | 1 | |
| 6 | 07 11 9 987 611 | SAFETY CLIP - S10 | 1 | |
| 7 | 46 52 1 454 158 | COUNTERSUNK HEAD SCREW - M10X50-8.8 | 1 | |
| 8 | 23 41 1 340 413 | SLEEVE | 1 | |
| 9 | 23 41 1 341 344 | BUSH | 1 | |
| 10 | 23 41 8 524 155 | BEARING SHELL | 1 | |
| 10 | 23 41 8 524 155 | BEARING SHELL | 1 | |
| 11 | 23 41 1 341 675 | SHIFT LEVER | 1 | |
| 12 | 07 11 9 932 0701 | SS 6MM WASHER | 1 | |
| 12 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/90) | 1 | |
| 12 | 07 11 9 932 073 | BLACK SPRING WASHER | 1 | |
| 12 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | 1 | |
| 13 | 07 12 9 905 386 | ISA SCREW - M6X30-8.8-ZNNIV | 1 |
