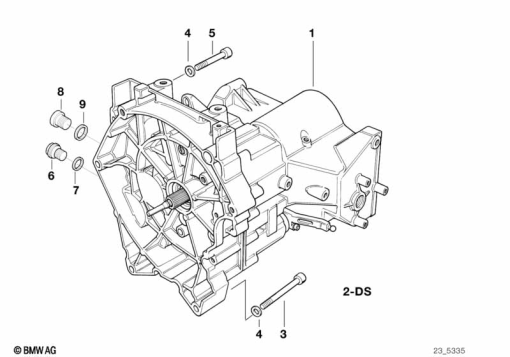

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 2 325 620 | EXCH. 5 SPEED GEARBOX, SILVER - M 97 | - | |
23 11 1 451 549 | 23 11 1 451 549Alternative for position 1 | - | ||
23 00 2 325 621 | EXCH. 5 SPEED GEARBOX, BLACK - M 97Alternative for position 1 | - | ||
23 11 1 451 549 | 23 11 1 451 549Alternative for position 1 | - | ||
| 2 | 23 00 1 341 764 | SET: GASKET SET FIVE SPEED GEARBOX | - | |
| 3 | 07 11 9 900 199 | FILLISTER-HEAD SCREW - M8X75-8.8-ZNS3 | - | |
| 4 | 07 11 9 904 826 | Washer | - | |
07 11 9 931 697 | WASHER - 8,4Alternative for position 4 | - | ||
| 5 | 07 12 9 906 694 | ISA SCREW - M8X55-8.8-ZNNIV | - | |
| 6 | 23 10 7 651 450 | SCREW PLUG, MAGNETIC - M14X1,5-ZNS | - | |
| 7 | 07 11 9 963 200 | GASKET RING - A14X18-AL | - | |
| 8 | 07 11 9 905 428 | SCREW PLUG - M18X1,5-ZNNIV | - | |
07 11 9 905 428M | DRAIN PLUG W/ MAGNETAlternative for position 8 | - | ||
| 9 | 07 11 9 963 300 | GASKET RING - A18X22-AL | - |
