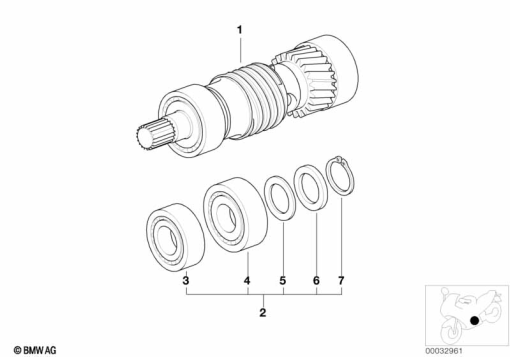

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 20 2 325 477 | DRIVE SHAFT - M 97 | - | |
| 2 | 23 00 2 325 604 | SET: REPAIR KIT F FINAL DRIVE SHAFT BEARING - 25(20)X52X15 | - | |
| 3 | 23 12 7 709 867 | CLEAN BEARING GROOVED BALL BEARING - 20X52X15 | - | |
| 4 | 23 12 2 325 518 | CLEAN BEARING GROOVED BALL BEARING - 25X52X15 | - | |
| 5 | 23 11 1 340 367 | SHIM - 20X28X0,50 | - | |
| 6 | 23 11 1 340 338 | SHIM - 42X52X0,30 | - | |
23 11 1 340 339 | SHIM - 42X52X0,40Alternative for position 6 | - | ||
23 11 1 340 340 | SHIM - 42X52X0,50Alternative for position 6 | - | ||
23 11 1 341 427 | SHIM - 42X52X0,35Alternative for position 6 | - | ||
23 11 1 341 428 | SHIM - 42X52X0,45Alternative for position 6 | - | ||
23 11 1 341 429 | SHIM - 42X52X0,55Alternative for position 6 | - | ||
| 7 | 23 00 2 325 246 | LOCK RING - 20X1,85 | - | |
23 00 2 325 247 | LOCK RING - 20X1,95Alternative for position 7 | - | ||
23 12 1 340 807 | LOCK RING - 20X1,75Alternative for position 7 | - |
