R1100GS (259E) | Fuel Preparation

INTAKE MANIFOLD

Diagram #13_0526 | 4 parts

100%

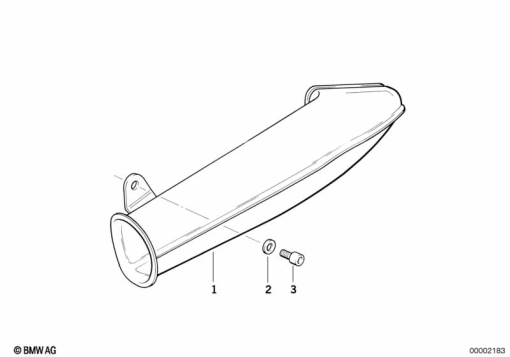

R1100GS (259E) INTAKE MANIFOLD exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
13 71 1 341 415
INTAKE MANIFOLD1
2
07 11 9 903 791
WASHER - A6,4-200HV-ZNS31
2
07 11 9 936 426
FLAT WASHER1
3
07 12 9 905 536
ISA SCREW - M6X16-8.8-ZNNIV1
