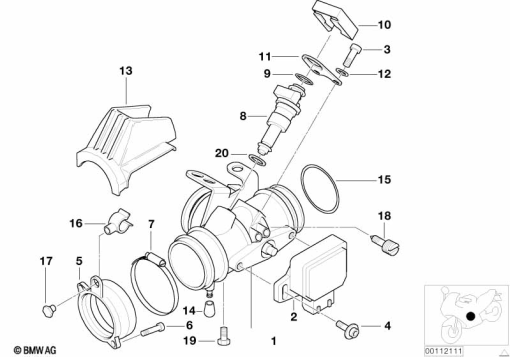

Parts List (29)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 54 1 341 685 | LEFT THROTTLE (to 07/96) | - | |
13 54 1 341 686 | RIGHT THROTTLE (to 07/96)Alternative for position 1 | - | ||
13 54 2 325 853 | LEFT THROTTLEAlternative for position 1 | - | ||
13 54 2 325 854 | RIGHT THROTTLEAlternative for position 1 | - | ||
| 2 | 13 63 8 409 501 | THROTTLE VALVE SWITCH | - | |
| 3 | 07 11 9 904 303 | FILLISTER-HEAD SCREW - M5X10-8.8-ZNNIV | - | |
| 4 | 07 11 9 902 162 | FILLISTER-HEAD SCREW - M4X12 | - | |
| 5 | 11 61 1 340 769 | INLET MANIFOLD LEFT | - | |
11 61 1 340 770 | INTAKE MANIFOLD RIGHTAlternative for position 5 | - | ||
| 6 | 11 13 1 460 677 | MULTI-PURPOSE BOLT - M6X20-Z3-ZNS | - | |
| 7 | 13 72 7 654 865 | HOSE CLAMP - D=64 | - | |
| 8 | 13 64 1 341 352 | INJECTION VALVE | - | |
| 9 | 13 64 1 730 767 | O-RING - 7,52X3,53 | - | |
| 10 | 13 53 1 274 729 | CLAMP (to 05/94) | - | |
| - | 13 53 1 340 997 | FUEL DISTRIBUTOR (to 05/94) | - | |
| 10 | 13 53 1 341 697 | SPRING CLIP (from 05/94) | - | |
| - | 13 53 1 341 076 | FUEL DISTRIBUTOR (from 05/94) | - | |
| - | 13 53 1 341 539 | FUEL DISTRIBUTOR (from 05/94) | - | |
| 11 | 13 64 1 340 958 | SPRING CLIP | - | |
| 12 | 07 11 9 932 098 | WAVE WASHER - B5 | - | |
| 13 | 13 54 1 341 589 | COVERING LEFT | - | |
| 14 | 13 54 7 694 924 | PROTECTION CAP | - | |
| 15 | 13 54 1 341 797 | O-RING - 52X2 | - | |
| 16 | 12 12 2 306 327 | HOSE CLAMP - D=7,2MM | - | |
12 12 2 306 328 | HOSE CLAMP - D=12MMAlternative for position 16 | - | ||
| 17 | 12 12 2 306 326 | 12 12 2 306 326 | 2 | |
| 18 | 13 54 1 342 074 | ADJUSTING SCREW - M 9X0,75 | - | |
| 19 | 07 11 9 913 218 | HEX BOLT - M5X10 | - | |
| 20 | 13 64 2 351 881 | GASKET RING | - |
