R1100GS (259E) | Fuel Preparation
INTAKE SILENCER / FILTER CARTRIDGE INTAKE SILENCER / FILTER CART

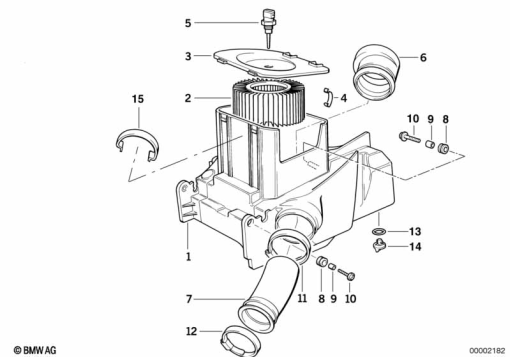

Diagram #13_0525 | 20 parts
100%
Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 71 1 341 527 | AIR CLEANER HOUSING | 1 | |
| 1 | 13 71 7 655 663 | COVER F SUCTION FILTER | 1 | |
| 2 | 13 71 1 341 528 | AIR FILTER ELEMENT | 1 | |
| 3 | 13 71 7 655 663 | COVER F SUCTION FILTER (from 12/99) | 1 | |
| 2 | 13 71 1 465 048 | SCREW (from 12/99) | 1 | |
| 3 | 13 71 1 341 208 | COVER (to 12/99) | 1 | |
| – | 13 71 1 707 044 | SPRING CLIP - L=34MM (to 12/99) | 1 | |
| 4 | 13 71 1 707 044 | SPRING CLIP - L=34MM | 1 | |
| 5 | 13 62 1 341 550 | INTAKE AIR TEMPERATURE SENSOR | 1 | |
| 6 | 13 71 1 341 317 | RUBBER GROMMET | 1 | |
| 7 | 13 71 1 341 405 | INTAKE MANIFOLD LEFT | 1 | |
| 7 | 13 71 1 341 406 | INTAKE MANIFOLD RIGHT | 1 | |
| 8 | 07 14 7 267 586 | RUBBER GROMMET | 1 | |
| 9 | 31 42 1 236 241 | BUSH | 1 | |
| 10 | 18 22 1 464 332 | FILLISTER HEAD SCREW | 1 | |
| 11 | 13 31 1 460 941 | HOSE CLAMP - D=66 | 1 | |
| 12 | 13 72 1 338 650 | HOSE CLAMP - D=58MM | 1 | |
| 13 | 13 71 1 340 778 | O-RING | 1 | |
| 14 | 13 71 1 340 752 | BLIND PLUG | 1 | |
| 15 | 13 71 1 341 920 | CLAMP | 1 |
