R1100GS (259E) | Frame, Fairing, Cases

UPPER MUDGUARD

Diagram #46_0282 | 4 parts | 1 available in shop

100%

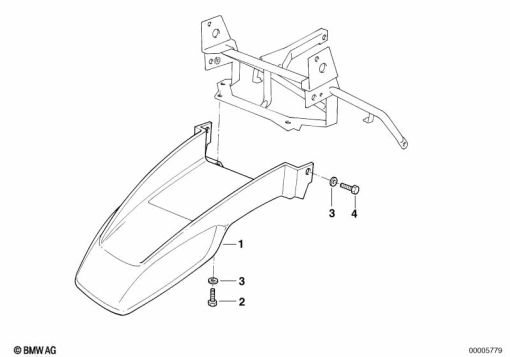

R1100GS (259E) UPPER MUDGUARD exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
46 61 2 313 365
UPPER PRIME COATED MUDGUARD1
2
46 63 2 313 527
FILLISTER-HEAD SCREW1
3
07 11 9 904 427
WASHER - 6-2001
4
32 71 2 308 643
FILLISTER-HEAD SCREW1
