R1100GS (259E) | Frame, Fairing, Cases
LOWER MUDGUARD

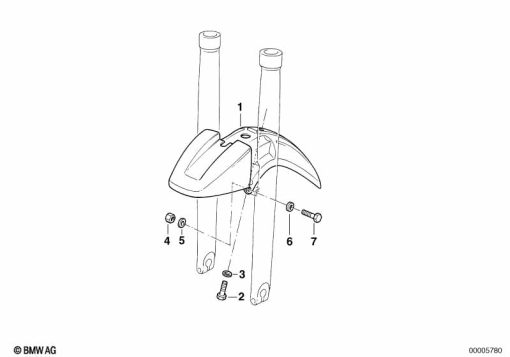

Diagram #46_0283 | 8 parts | 2 available in shop
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 2 313 249 | LOWER MUDGUARD | 1 | |
| 1 | 46 61 2 324 395 | EXTENDED LOWER MUDGUARD | 1 | |
| 2 | 07 11 9 905 524 | HEX BOLT - M6X12-8.8-ZNNIV | 1 | |
| 3 | 07 11 9 904 427 | WASHER - 6-200 | 1 | |
| 4 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | 1 | |
| 5 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 6 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | 1 | |
| 7 | 46 54 2 322 498 | FILLISTER-HEAD SCREW - M6X18 | 1 |
