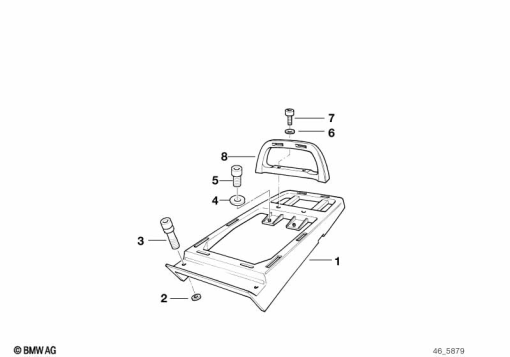

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 309 514 | BAGGAGE PORTER | 1 | |
| 2 | 07 11 9 931 823 | WASHER - A8 | 1 | |
| 3 | 11 13 1 460 677 | MULTI-PURPOSE BOLT - M6X20-Z3-ZNS | 1 | |
| 4 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 5 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | 1 | |
| 6 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | 1 | |
| 7 | 07 11 9 902 989 | FILLISTER-HEAD SCREW - M6X75MM | 1 | |
| 8 | 46 54 2 313 559 | HANDLE - WHITEALU | 1 |
