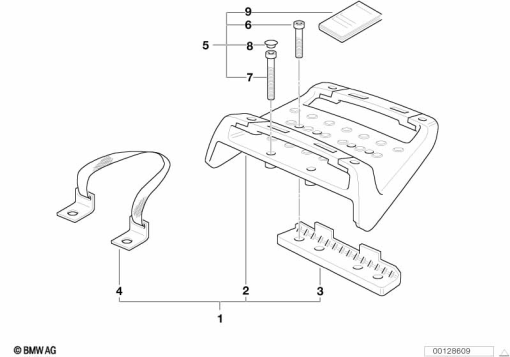

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 7 682 311 | SET: RETROFIT KIT, TOP CASE BRACKET - 35 LTR. | - | |
| 2 | 46 54 2 316 673 | TOP CASE CARRIER | - | |
| 3 | 46 54 2 316 626 | CLAMP PLATE | - | |
| 4 | 46 54 2 316 674 | SET: STRAP MODIFICATION SET | - | |
| - | 46 54 2 316 675 | BUSH | - | |
| - | 07 11 9 913 980 | HEX BOLT - M6X30-Z3 | - | |
| 5 | 71 60 7 682 310 | SET: MOUNTING PARTS, BRACKET F TOP CASE - 35 LTR. | - | |
| 6 | 07 12 9 905 386 | ISA SCREW - M6X30-8.8-ZNNIV | - | |
| 7 | 07 11 9 904 509 | FILLISTER-HEAD SCREW - M6X60-8.8-ZNS3 | - | |
| 8 | 46 54 2 315 618 | PROTECTION CAP BLACK | - | |
| 9 | 01 29 9 797 412 | INST. INSTR., TOP CASE CARRIER | - |
