R1100GS (259E) | Frame, Fairing, Cases

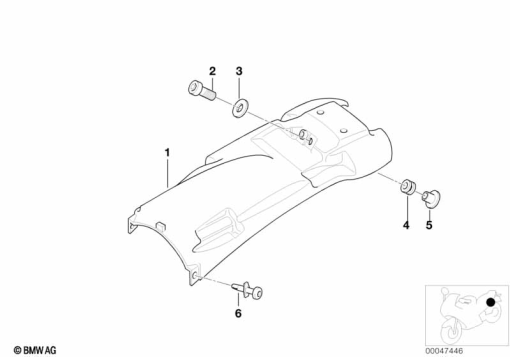

WHEEL COVER, REAR
Diagram #46_0606 | 6 parts | 1 available in shop
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 2 313 387 | WHEEL COVER, PRIMED, REAR | 1 | |
| 2 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | 1 | |
| 3 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | 1 | |
| 4 | 46 63 1 451 277 | RUBBER GROMMET | 1 | |
| 5 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | 1 | |
| 6 | 51 13 1 885 399 | CLAMP | 1 |
