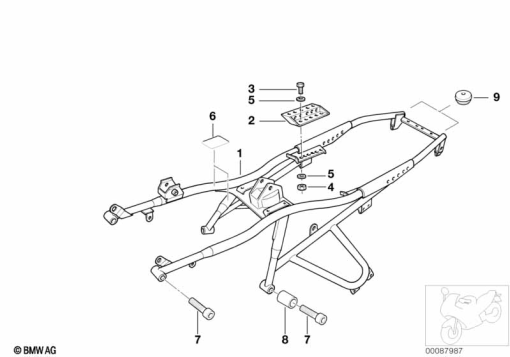

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 2 320 701 | REAR FRAME | - | |
| 2 | 46 51 2 314 464 | HOLDER | - | |
| 3 | 07 11 9 913 456 | HEX BOLT - M6X14-10.9-MK | - | |
| 4 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 5 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 6 | 46 51 2 330 634 | PROTECTION FOIL - 25X30 | - | |
46 54 2 315 901 | FOILAlternative for position 6 | - | ||
| 9 | 51 71 1 130 780 | BLIND PLUG | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
