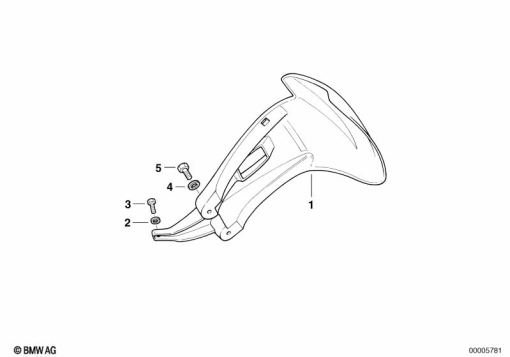

Parts List (5)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 2 313 253 | MUDGUARD REAR | 1 | |
| 2 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | 1 | |
| 3 | 07 11 9 900 311 | FILLISTER-HEAD SCREW - M5X16-8.8-ZNS | 1 | |
| 4 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 5 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | 1 |
