R1100GS (259E) | Frame, Fairing, Cases
FAIRING BRACKET

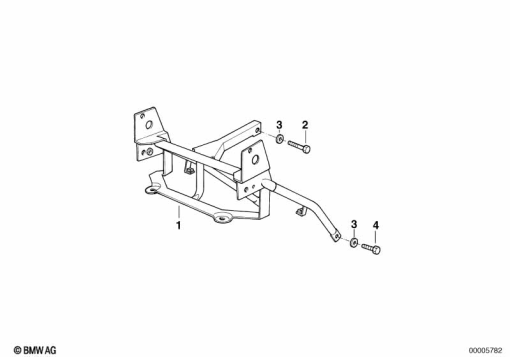

Diagram #46_0285 | 4 parts | 1 available in shop
100%
Parts List (4)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 2 325 749 | FAIRING BRACKET | 1 | |
| 2 | 07 11 9 901 027 | FILLISTER-HEAD SCREW - M8X35 ZNS | 1 | |
| 3 | 13 51 2 243 795 | WASHER - 18X8,4X3 | 1 | |
| 4 | 46 63 2 313 246 | FILLISTER-HEAD SCREW - M8X25 | 1 |
