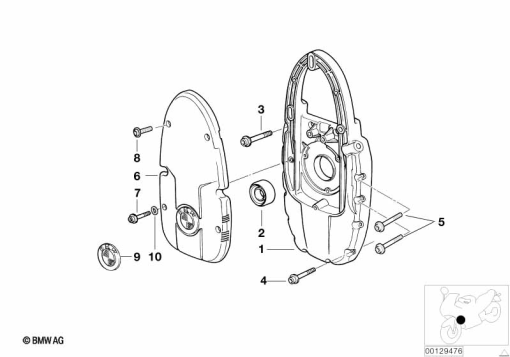

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 1 342 293 | BLACK ALTERNATOR SUPPORT COVER (to 12/97) | - | |
11 11 1 342 292 | SILVER ALTERNATOR SUPPORT COVER (05/94 to 12/97)Alternative for position 1 | - | ||
11 11 1 341 895 | BLACK ALTERNATOR SUPPORT COVER (from 12/97)Alternative for position 1 | - | ||
11 11 1 341 893 | SILVER ALTERNATOR SUPPORT COVER (from 12/97)Alternative for position 1 | - | ||
| 2 | 11 11 1 341 357 | SHAFT SEAL - 30X42X7 | - | |
| 3 | 07 12 9 904 835 | ISA SCREW - M8X30-U1-8.8 | - | |
| 4 | 07 12 9 905 537 | ISA SCREW WITH WASHER - M6X30-U0-8.8 | - | |
| 6 | 11 14 7 678 717 | COVER, BLACK | - | |
71 60 7 664 236 | HP CARBON BELT COVERAlternative for position 6 | - | ||
| 7 | 07 12 9 905 121 | ISA SCREW - M5X20-U1-8.8 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
