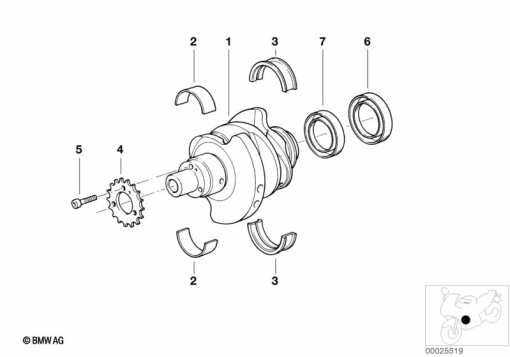

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 21 1 340 204 | CRANKSHAFT WITHOUT BEARING SHELLS (to 12/97) | - | |
11 21 1 342 275 | CRANKSHAFT (from 12/97)Alternative for position 1 | - | ||
| 2 | 11 21 1 340 625 | BEARING SHELL YELLOW | - | |
11 21 1 340 626 | BEARING SHELL GREENAlternative for position 2 | - | ||
11 21 1 341 573 | BEARING SHELL YELLOW - +0,25Alternative for position 2 | - | ||
11 21 1 341 574 | BEARING SHELL GREEN - +0,25Alternative for position 2 | - | ||
| 3 | 11 21 7 678 812 | GUIDE-BEARING SHELL YELLOW - +0,25 (to 07/05) | - | |
11 21 8 555 238 | GUIDE-BEARING SHELL YELLOW - +0,25Alternative for position 3 | - | ||
11 21 7 675 275 | GUIDE-BEARING SHELL WHITEAlternative for position 3 | - | ||
11 21 7 678 813 | GUIDE-BEARING SHELL GREEN - +0,25Alternative for position 3 | - | ||
11 21 7 678 814 | GUIDE-BEARING SHELL WHITE - +0,25Alternative for position 3 | - | ||
11 21 8 555 236 | GUIDE-BEARING SHELL YELLOWAlternative for position 3 | - | ||
11 21 8 555 237 | GUIDE-BEARING SHELL GREENAlternative for position 3 | - | ||
| 4 | 11 31 1 340 586 | SPROCKET | - | |
| 5 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | - | |
| 6 | 11 11 1 341 087 | SHAFT SEAL - 65X85X7 | - | |
| 7 | 11 11 1 341 135 | SHAFT SEAL - 65X83X7 (from 12/97) | - | |
ENA41135 | REAR MAIN SEAL 35-83-7Alternative for position 7 | - |
