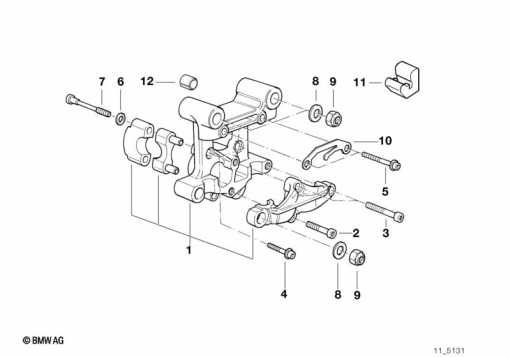

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 33 7 670 599 | LEFT CAMSHAFT SUPPORTING BRACKET | - | |
11 33 7 670 600 | RIGHT CAMSHAFT SUPPORTING BRACKETAlternative for position 1 | - | ||
| 2 | 11 33 1 340 745 | TORX BOLT - M8X30 | - | |
| 3 | 11 33 7 713 044 | TORX BOLT - M8X40 | - | |
| 5 | 07 11 9 920 131 | FILLISTER HEAD WITH WASHER - M6X60 | - | |
| 6 | 11 31 1 460 923 | SHIM - 8,2X14X1,2 | - | |
| 7 | 11 33 1 340 743 | TORX BOLT - M8X65 | - | |
| 8 | 11 12 1 464 026 | WASHER - 10,5X20X3 | - | |
| 9 | 11 12 7 650 402 | HEX NUT - M10 | - | |
| 10 | 11 33 7 677 901 | CONTACT SPRING | - | |
| 11 | 11 33 1 341 619 | RUBBER BUFFER | - | |
| 12 | 11 12 1 726 241 | DOWEL - D=12,5MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
