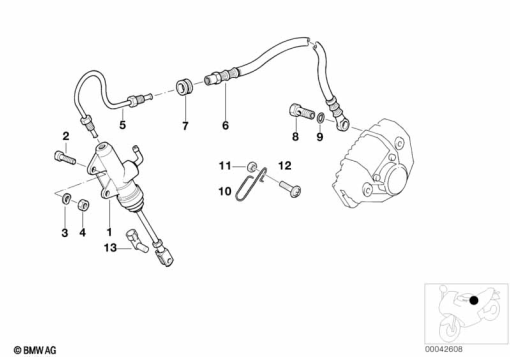

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 2 314 726 | BRAKE MASTER CYLINDER - D=13MM | - | |
| 2 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - | |
| 3 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/90)Alternative for position 3 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 3 | - | ||
07 11 9 904 446 | WASHER - 5-200 HV-ZNNIVAlternative for position 3 | - | ||
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 3 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 3 | - | ||
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN (to 08/90)Alternative for position 3 | - | ||
07 11 9 904 446 | WASHER - 5-200 HV-ZNNIVAlternative for position 3 | - | ||
| 4 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | - | |
| 5 | 34 32 2 314 774 | BRAKE PIPE | - | |
| 6 | 34 32 2 314 555 | BRAKE HOSE | - | |
| 7 | 34 32 1 236 462 | GROMMET | - | |
| 8 | 34 32 1 242 205 | HOLLOW BOLT | - | |
| 9 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 10 | 34 32 2 312 894 | HOSE CLAMP | - | |
| 11 | 07 14 7 153 450 | SELF-LOCKING HEX NUT - M6 | - | |
| 12 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - | |
| 13 | 07 12 9 934 961 | PIN - 6X12 | - |
