R1100GS (259E) | Brakes

BRAKE PIPE REAR ABS

Diagram #34_0668 | 4 parts | 2 available in shop

100%

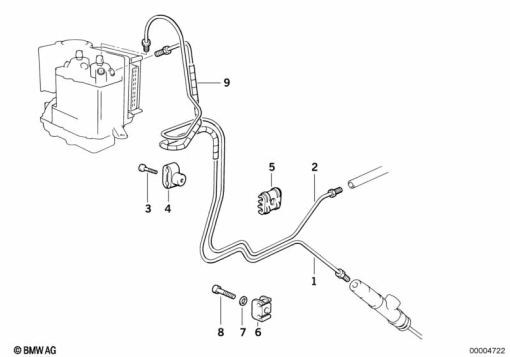

R1100GS (259E) BRAKE PIPE REAR ABS exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
34 32 2 314 813
BRAKE PIPE REAR ABS1
2
34 32 2 314 815
BRAKE PIPE REAR ABS1
4
34 32 2 314 637
HOLDER1
9
34 32 2 310 078
SPIRAL CONDUIT - L=1500MM1
