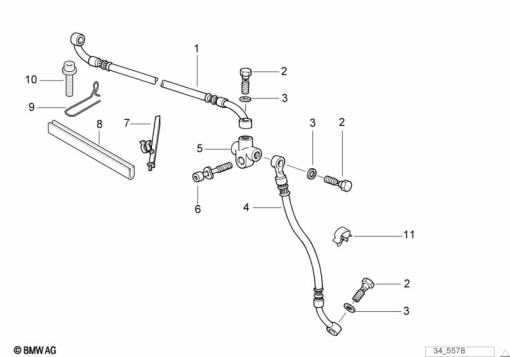

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 2 314 552 | BRAKE HOSE | - | |
| 2 | 34 32 1 242 205 | HOLLOW BOLT | - | |
| 3 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 4 | 34 32 2 314 553 | BRAKE HOSE | - | |
| 5 | 34 32 2 314 898 | DISTRIBUTION PIECE | - | |
| 6 | 11 14 1 460 678 | FILLISTER-HEAD SCREW - M6X25 | - | |
| 7 | 13 31 1 707 705 | HOSE CLAMP | - | |
| 8 | 34 32 2 331 053 | EDGE PROTECTION - L=110MM | - | |
| 9 | 34 32 2 325 202 | BRACKET FRONT | - | |
| 10 | 46 63 2 322 460 | FILLISTER HEAD WITH WASHER - M6X12-Z3-8.8 | - | |
| 11 | 61 13 1 369 668 | CABLE HOLDER - D=16,7MM | - |
