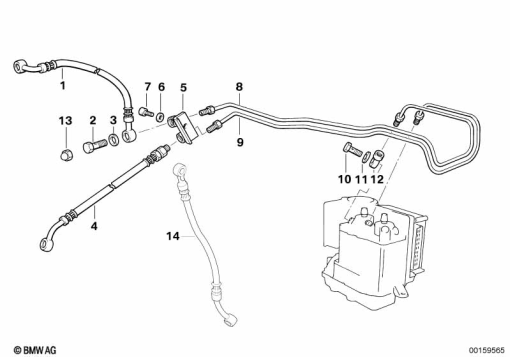

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 2 314 572 | BRAKE HOSE | - | |
| 2 | 34 32 1 242 205 | HOLLOW BOLT | - | |
| 3 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 4 | 34 32 2 314 744 | BRAKE HOSE | - | |
| 5 | 34 32 2 330 717 | DISTRIBUTION PIECE | - | |
| 6 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 7 | 07 11 9 920 148 | FILLISTER-HEAD SCREW - M6X12-8.8-ZNS | - | |
| 8 | 34 32 2 314 809 | BRAKE PIPE - ABS | - | |
| 9 | 34 32 2 314 811 | BRAKE PIPE - ABS | - | |
| 10 | 07 11 9 963 106 | GASKET RING - A10X16-CU | - | |
34 32 2 314 697 | HOLLOW BOLT - M10X1X19Alternative for position 10 | - | ||
| 11 | 07 11 9 963 132 | GASKET RING - A12X16-CU | - | |
| 12 | 34 32 2 314 694 | CONNECTOR | - | |
| 13 | 34 32 2 330 575 | PROTECTION CAP BLACK - 14MM | - | |
| 14 | 34 32 2 314 553 | BRAKE HOSE | - |
