R1100GS (259E) | Brakes

FLUID CONTAINER REAR

Diagram #34_0666 | 8 parts

100%

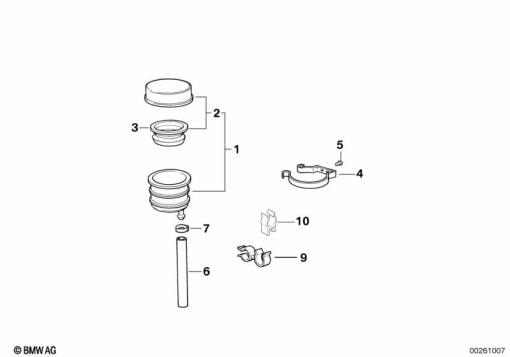

R1100GS (259E) FLUID CONTAINER REAR exploded view parts diagram

Parts List (8)

#Part NumberDescriptionQty
1
34 31 2 314 082
EXPANSION TANK-
2
34 31 2 314 091
COVER-
3
34 31 2 314 092
RUBBER COVER-
4
46 51 2 314 312
BRACKET FOR BRAKE FLUID RESERVOIR, REAR-
5
07 12 9 948 747
BLIND RIVET - 3,2 2A-
6
34 32 1 457 880
HOSE-
7
17 11 1 460 922
HOSE CLAMP - D=12,3MM-
9
11 42 1 338 637
HOSE CLAMP-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
