R1100GS (259E) | Brakes

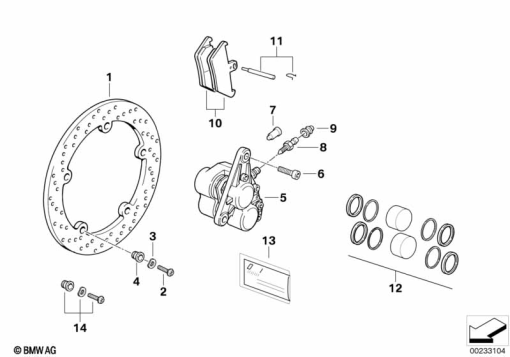

FRONT-WHEEL BRAKE, SPOKE WHEEL
Diagram #34_0682 | 23 parts | 6 available in shop
100%
Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 2 314 893 | BRAKE DISK LEFT | 1 | |
| 1 | 34 11 2 314 887 | ROLL PIN | 1 | |
| 1 | 34 11 2 314 888 | WAVE WASHER - 14,2 / 21,6 | 1 | |
| 1 | 34 11 7 713 039 | OVAL HEAD SCREW - M8X20MK | 1 | |
| 1 | 34 11 2 314 894 | BRAKE DISC RIGHT | 1 | |
| 1 | 34 11 2 314 887 | ROLL PIN | 1 | |
| 1 | 34 11 2 314 888 | WAVE WASHER - 14,2 / 21,6 | 1 | |
| 1 | 34 11 7 713 039 | OVAL HEAD SCREW - M8X20MK | 1 | |
| 2 | 34 11 7 713 039 | OVAL HEAD SCREW - M8X20MK | 1 | |
| 3 | 34 11 2 314 888 | WAVE WASHER - 14,2 / 21,6 | 1 | |
| 4 | 34 11 2 314 887 | ROLL PIN | 1 | |
| 5 | 34 11 2 333 111 | CALIPER WITH OUT BRAKE PADS LEFT - D=32/34MM | 1 | |
| 5 | 34 11 2 333 112 | CALIPER WITH OUT BRAKE PADS RIGHT - D=32/34MM | 1 | |
| 6 | 07 11 9 904 253 | FILLISTER-HEAD SCREW - M10X25-8.8-ZNS3 | 1 | |
| 7 | 32 72 2 333 158 | VENTILATION SCREW | 1 | |
| 8 | 34 21 2 330 310 | VENT SCREW - M10 | 1 | |
| 9 | 34 21 1 236 794 | DUST CAP | 1 | |
| 10 | 34 11 7 658 156 | SET: BRAKE PADS KIT | 1 | |
| 10 | 83 12 2 296 187 | Brake Pad Paste - 5 ml | 1 | |
| 2 | 34 11 2 330 418 | SET: MOUNTING PARTS SET | 1 | |
| 11 | 34 11 2 330 418 | SET: MOUNTING PARTS SET | 1 | |
| 12 | 34 11 2 331 631 | SET: REPAIR SET BRAKE CALIPER | 1 | |
| 13 | 83 19 2 240 251 | LUBRICANT, SILICONE - 50G | 1 |
