R100R (2473) | Frame, Fairing, Cases
WHEEL COVER, REAR

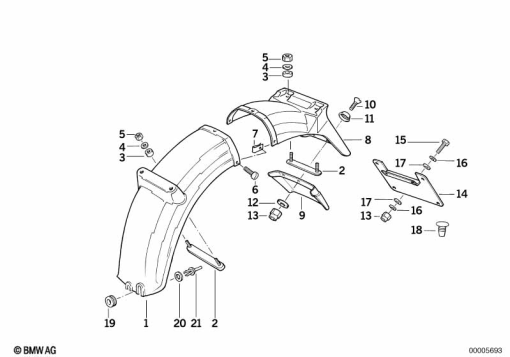

Diagram #46_0196 | 25 parts | 1 available in shop
100%
Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 2 307 370 | WHEEL COVER, BLACK, REAR | 1 | |
| 2 | 46 62 1 235 877 | REINFORCEMENT - M6X25 | 1 | |
| 2 | 46 62 1 452 422 | REINFORCEMENT - M6X20 | 1 | |
| 3 | 46 62 1 230 798 | RUBBER WASHER | 1 | |
| 4 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | 1 | |
| 4 | 07 11 9 936 426 | FLAT WASHER | 1 | |
| 5 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | 1 | |
| 5 | 07 12 9 905 817 | HEX NUT | 1 | |
| 5 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | 1 | |
| 6 | 07 11 9 907 582 | FILLISTER HEAD SCREW - M5X12-Z1 | 1 | |
| 7 | 61 13 1 372 033 | BODY NUT - M5 | 1 | |
| 8 | 46 62 2 307 371 | REGISTRATION PLATE MOUNTING | 1 | |
| 9 | 46 62 2 308 544 | MUD FLAPS | 1 | |
| 10 | 46 62 2 313 516 | COUNTERSUNK HEAD SCREW - M5X16-4.8-SW | 1 | |
| 11 | 51 45 1 801 524 | WASHER | 1 | |
| 12 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 14 | 46 62 2 308 563 | REGISTRATION PLATE MOUNTING | 1 | |
| 15 | 07 11 9 928 497 | CSK.FILLISTER HEAD SREW - M5X20 | 1 | |
| 16 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | 1 | |
| 16 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 17 | 46 61 1 236 899 | RUBBER WASHER | 1 | |
| 18 | 46 62 2 309 944 | PLUG | 1 | |
| 19 | 46 63 1 451 277 | RUBBER GROMMET | 1 | |
| 20 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 21 | 51 16 1 881 149 | EXPANDING RIVET | 1 |
