R100R (2473) | Frame, Fairing, Cases

BATTERY COVER

Diagram #46_0197 | 3 parts | 2 available in shop

100%

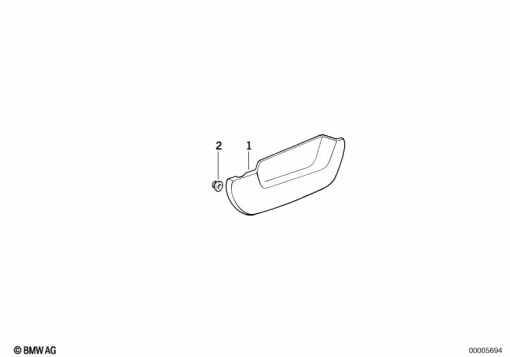

R100R (2473) BATTERY COVER exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
46 63 2 307 375
BATTERY COVER LEFT PRIME COATED1
1
46 63 2 307 376
BATTERY COVER RIGHT PRIME COATED1
2
46 63 1 453 144
RUBBER GROMMET1
