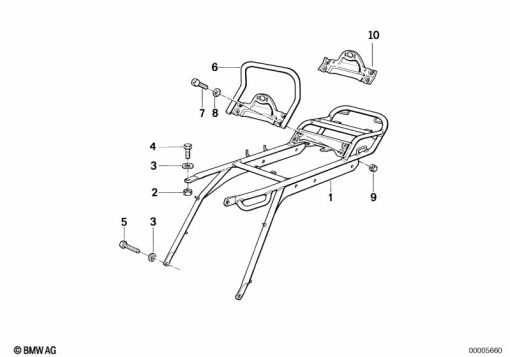

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 2 314 266 | REAR FRAME SILVER | - | |
46 51 2 314 483 | REAR FRAME BLACKAlternative for position 1 | - | ||
| 2 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| 3 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 4 | 07 11 9 905 394 | HEX BOLT WITH WASHER - M8X25-8.8-ZNNIV | - | |
| 5 | 07 11 9 905 532 | HEX BOLT WITH WASHER - M8X30-ZNNIV SI | - | |
| 7 | 46 51 2 311 713 | FILLISTER HEAD WITH WASHER - M6X16 | - | |
| 8 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 9 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 10 | 46 51 2 315 375 | HOLDER | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
