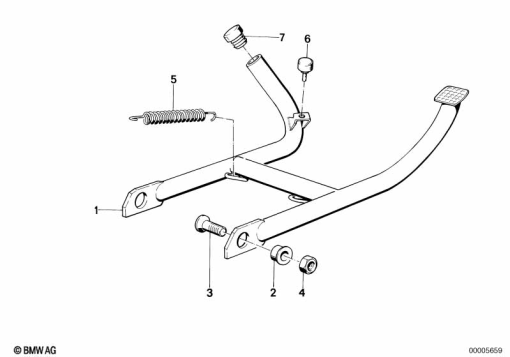

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 52 2 312 444 | CENTER STAND | - | |
| 2 | 46 52 2 301 704 | BUSH - 13,5MM | - | |
| 3 | 07 11 9 900 826 | COUNTERSUNK HEAD SCREW - M10X30 | - | |
| 4 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 | - | |
| 5 | 46 52 2 301 583 | TENSION SPRING - L=143MM | - | |
46 52 2 331 805 | TENSION SPRING - L=111MMAlternative for position 5 | - | ||
| 7 | 46 52 1 236 522 | 28.66 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
