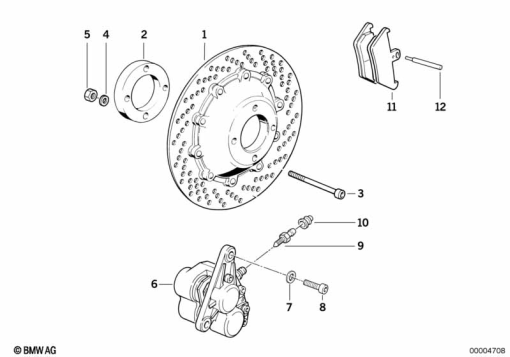

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 2 311 197 | BRAKE ROTOR, BLACK, LEFT | - | |
34 11 2 311 198 | BRAKE ROTOR, BLACK, RIGHTAlternative for position 1 | - | ||
| 2 | 36 31 1 452 728 | RING - 0,8MM | - | |
| 3 | 07 11 9 905 509 | FILLISTER-HEAD SCREW - M10X90-ZNS3 | - | |
07 11 9 906 725 | FILLISTER-HEAD SCREW - M10X95-8.8Alternative for position 3 | - | ||
| 4 | 07 11 9 907 114 | WASHER - 10-200HV-ZNNIV | - | |
| 5 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 | - | |
| 6 | 34 11 2 331 627 | BRAKE CALIPER, LEFT - D=32/34MM | - | |
34 11 2 331 628 | CALIPER RIGHT - D=32/34MMAlternative for position 6 | - | ||
| 7 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 8 | 07 11 9 901 049 | FILLISTER-HEAD SCREW - M10X30-8.8-ZNS | - | |
| 9 | 34 21 1 236 793 | VENT SCREW - M10X1-ZN | - | |
| 10 | 34 21 1 236 794 | DUST CAP | - | |
| 11 | 34 11 7 663 764 | SET: BRAKE PADS KIT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 11 | - | ||
| - | 34 11 2 330 418 | SET: MOUNTING PARTS SET | - | |
| 12 | 34 11 2 330 418 | SET: MOUNTING PARTS SET | - |
