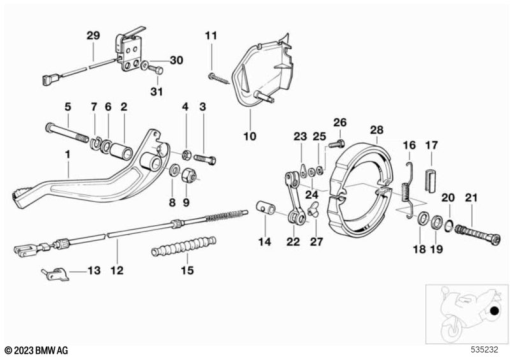

Parts List (30)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 21 2 312 385 | BRAKE LEVER | - | |
| 2 | 46 53 1 452 359 | BUSH | - | |
| 3 | 07 11 9 904 357 | HEX BOLT - M6X16-8.8-ZNS3 | - | |
| 4 | 07 11 9 921 054 | HEX NUT - M6-04-2-ZN | - | |
| 5 | 35 21 1 458 082 | BOLT | - | |
| 6 | 07 11 9 932 642 | SHIM - 15X21X2 | - | |
| 7 | 07 11 9 902 398 | LOCK RING - 14X1 | - | |
| 8 | 11 12 1 336 872 | WASHER - 3,5 ZNS | - | |
| 9 | 07 11 9 907 049 | HEX NUT - M10X1.25-ZNNIV | - | |
| 10 | 35 21 1 457 917 | MUDGUARD | - | |
| 11 | 07 11 9 905 199 | SHEET METAL SCREW - ST4,8X38-R-ZNFE | - | |
| 12 | 35 21 1 458 198 | BOWDEN CABLE | - | |
| 13 | 07 12 9 934 961 | PIN - 6X12 | - | |
| 14 | 34 21 4 044 141 | 0.03 | - | |
| 15 | 35 21 1 458 052 | 0.02 | - | |
| 16 | 34 21 1 458 377 | TENSION SPRING | - | |
| 17 | 34 21 1 458 148 | ABSORBER | - | |
| 18 | 35 21 1 230 360 | GASKET RING - 14X22X1.50 | - | |
| 19 | 34 21 3 060 107 | WASHER | - | |
| 20 | 35 21 1 457 605 | GASKET RING - 12X1 | - | |
| 21 | 35 21 2 310 897 | REAR BRAKE CAM | - | |
| 22 | 35 21 1 239 078 | BRAKE LEVER | - | |
| 23 | 35 21 1 454 765 | SHACKLE | - | |
| 26 | 07 12 9 903 807 | ISA SCREW - M6X25-8.8-ZNS3 | - | |
| 27 | 35 21 1 232 137 | WING NUT | - | |
| 28 | 34 21 2 311 014 | BRAKE SHOE | - | |
| 29 | 61 31 1 459 747 | BRAKE LIGHT SWITCH FOOT BRAKE | - | |
| 30 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 30 | - | ||
| 31 | 07 11 9 906 431 | FILLISTER HEAD SCREW - M5X12-ZN | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
