R100GS (47E1) | Front Suspension

ABSORBER

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

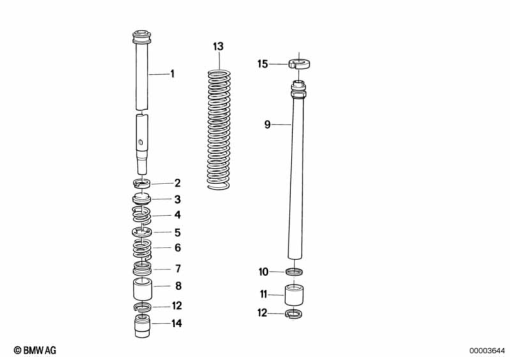

Diagram #31_0374 | 15 parts

100%

Parts List (15)

#	Part Number	Description	Qty
1	31 42 1 457 863	PIPE RIGHT	-
2	31 42 1 458 059	RING	-
3	31 42 2 311 095	GUIDE RING	-
4	31 42 1 458 060	COMPRESSION SPRING	-
5	31 42 1 458 100	SPRING RETAINER	-
6	31 42 1 458 106	COMPRESSION SPRING	-
7	31 42 1 458 057	VALVE WASHER	-
8	31 42 1 457 857	VALVE HOUSING, LEFT	-
9	31 42 1 457 854	PIPE LEFT	-
10	31 42 1 458 058	VALVE WASHER	-
11	31 42 1 457 867	BUSH	-
12	31 42 1 458 078	LOCK RING	-
13	31 42 1 458 079	COMPRESSION SPRING	-
14	31 42 1 457 865	BUSH RIGHT	-
15	31 42 1 458 254	GUIDE RING, LEFT	-
