R100GS (47E1) | Front Suspension

FORK SLIDER

Diagram #31_0375 | 24 parts

100%

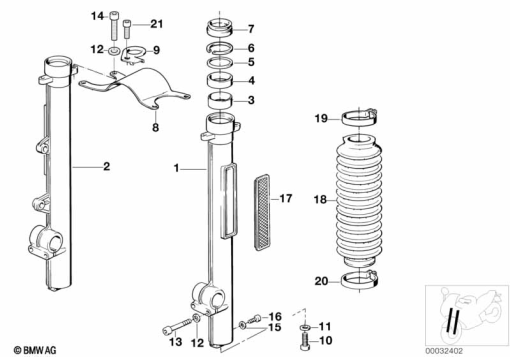

R100GS (47E1) FORK SLIDER exploded view parts diagram

Parts List (24)

#Part NumberDescriptionQty
1
31 42 1 458 061
INNER TUBE, BLACK, LEFT-
31 42 1 458 223
INNER TUBE, YELLOW, LEFTAlternative for position 1-
2
31 42 1 458 062
INNER TUBE, BLACK, RIGHT-
31 42 1 458 224
INNER TUBE, YELLOW, RIGHTAlternative for position 2-
3
31 42 1 458 222
SLIDING SLEEVE-
4
31 42 1 458 064
SHAFT SEAL - 40X52X10-
5
31 42 2 312 184
WASHER-
6
31 42 1 458 067
SNAP RING-
7
31 42 1 458 065
0.04-
8
31 42 1 452 517
STABILIZER-
9
31 42 1 457 427
HOLDER-
10
07 11 9 919 778
FILLISTER-HEAD SCREW - M12X30-8.8-CD-
11
31 42 1 458 231
GASKET RING - 12.7X18X1.5-
12
07 11 9 904 115
WAVE WASHER - 8,4X15-ZNS3-
13
07 11 9 901 027
FILLISTER-HEAD SCREW - M8X35 ZNS-
14
07 12 9 904 477
ISA SCREW - M8X25-10.9-ZNS3-
15
31 42 1 458 477
O-RING - 5,28X1,78-
16
31 42 2 332 000
INNER HEX BOLT - M6X6-
17
63 14 1 244 529
SIDE REFLECTOR, YELLOW, FRONT-
18
31 42 1 458 220
RUBBER BOOT (to 08/89)-
-
1988-1990 ll rib boots.
1988-1990 ll rib boots.-
18
31 42 2 311 077
RUBBER BOOT (from 08/89)-
19
31 42 1 458 225
HOSE CLAMP - D=44MM-
20
31 42 1 458 226
HOSE CLAMP - D=61MM-
