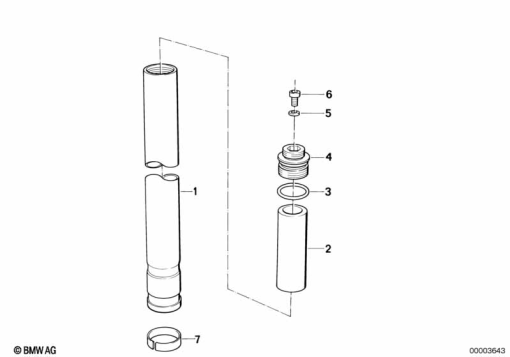

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 1 457 853 | STANCHION | 1 | |
| 2 | 31 42 1 458 056 | SPACER TUBE - L=159MM | 1 | |
| 3 | 31 42 1 458 075 | O-RING | 1 | |
| 4 | 31 42 1 457 858 | SPRING RETAINER | 1 | |
| 5 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL | 1 | |
| 6 | 07 11 9 901 039 | FILLISTER-HEAD SCREW - M10X20-8.8-ZNS | 1 | |
| 7 | 31 42 1 458 077 | BUSH | 1 |
