R100GS (47E1) | Frame, Fairing, Cases
SET CASE HOLDER

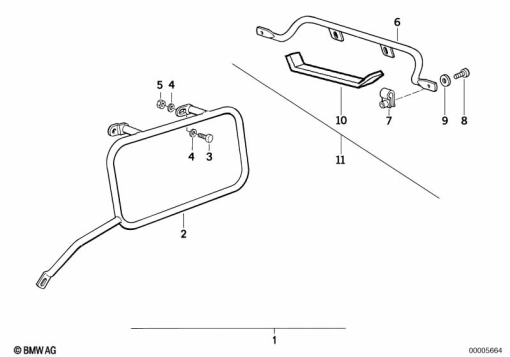

Diagram #46_0169 | 19 parts | 1 available in shop
100%
Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 315 685 | SET: CASE HOLDER - BLACK | 1 | |
| 1 | 46 54 2 315 687 | SET: CASE HOLDER - CHROME | 1 | |
| 2 | 46 54 2 303 547 | LEFT CASE HOLDER - BLACK | 1 | |
| 2 | 46 54 2 303 548 | CASE HOLDER RIGHT - BLACK | 1 | |
| 2 | 46 54 2 303 851 | LEFT CASE HOLDER - CHROME | 1 | |
| 2 | 46 54 2 303 852 | CASE HOLDER RIGHT - CHROME | 1 | |
| 3 | 07 11 9 901 438.1 | M6X16 SS ALLEN BOLT | 1 | |
| 3 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | 1 | |
| 4 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | 1 | |
| 5 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 08/90) | 1 | |
| 4 | 07 11 9 936 426 | FLAT WASHER | 1 | |
| 5 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | 1 | |
| 5 | 07 14 7 575 163 | SELF-LOCKING HEX NUT | 1 | |
| 6 | 72 60 2 315 678 | CASE ROD - BLACK | 1 | |
| 7 | 72 60 2 315 672 | CLAMP - BLACK | 1 | |
| 8 | 07 11 9 919 801 | FILLISTER-HEAD SCREW - M6X16 | 1 | |
| 9 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | 1 | |
| 10 | 62 21 1 459 439 | SEALING STRIP - 60X15X4 | 1 | |
| 11 | 72 60 2 315 422 | SET: RETROFIT KIT, CASE ROD | 1 |
