R100GS (47E1) | Frame, Fairing, Cases

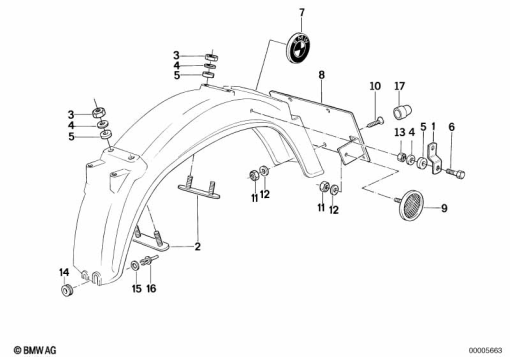

REAR MUDGUARD/MOUNTING PARTS, MOUNTING
Diagram #46_0168 | 31 parts
100%
Parts List (31)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 2 307 013 | HOLDER | - | |
| 2 | 46 62 1 452 422 | REINFORCEMENT - M6X20 | - | |
| 3 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 12 9 905 817 | HEX NUTAlternative for position 3 | - | ||
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 3 | - | ||
| 4 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 904 202 | WASHER - A6,4-ZNNIV SIAlternative for position 4 | - | ||
| 5 | 46 62 1 230 798 | RUBBER WASHER | - | |
| 6 | 07 11 9 913 016 | HEX BOLT - M6X20-8.8-ZNS | - | |
07 11 9 913 016.1 | STAINLESS 6 X 20 BOLTAlternative for position 6 | - | ||
07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIVAlternative for position 6 | - | ||
| - | 07 11 9 936 426 | FLAT WASHER | - | |
| 7 | 46 63 7 686 746 | BADGE - D=70MM | - | |
| 8 | 46 62 1 453 692 | REGISTRATION PLATE MOUNTING | - | |
| - | 07 11 9 901 438.1 | M6X16 SS ALLEN BOLT | - | |
| 8 | 46 62 2 303 274 | BRACKET | - | |
| 9 | 63 14 1 244 430 | REFLECTOR, YELLOW | - | |
63 13 1 354 792 | REFLECTOR, REDAlternative for position 9 | - | ||
| 10 | 07 11 9 913 015 | HEX BOLT - M6X16-8.8-ZNS | - | |
46 63 1 241 162 | EXPANDING RIVETAlternative for position 10 | - | ||
| 11 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 11 | - | ||
| 12 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 13 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 02/96) | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 13 | - | ||
| 14 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| - | 07 12 9 905 817 | HEX NUT | - | |
| 15 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | - | |
| 16 | 51 16 1 881 149 | EXPANDING RIVET | - | |
| 17 | 46 62 1 453 668 | PROTECTIVE CAP FOR B+ - M6 | - | |
| - | 07 14 7 575 163 | SELF-LOCKING HEX NUT | - |
