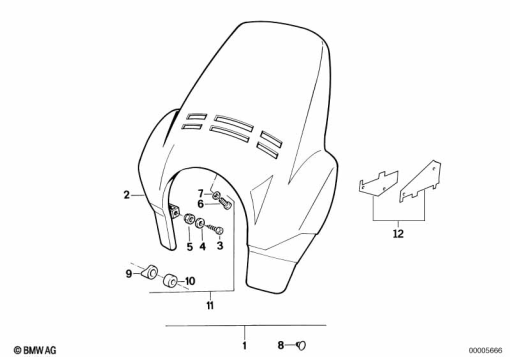

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 46 63 2 303 902 | WIND DEFLECTOR, PRIMED | - | |
| 3 | 07 11 9 920 057 | FILLISTER-HEAD SCREW - M5X20-8.8 ZNS | - | |
| 4 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 4 | - | ||
| 6 | 07 11 9 919 801 | FILLISTER-HEAD SCREW - M6X16 | - | |
| 7 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 8 | 62 21 2 303 568 | COVERING CAP - BLACK | - | |
62 21 2 303 569 | COVERING CAP - WHITEAlternative for position 8 | - | ||
| 9 | 62 21 2 303 895 | 62 21 2 303 895 | - | |
| 10 | 62 21 2 303 968 | BUSH | - | |
| 11 | 46 63 9 062 391 | SET: MOUNTING PARTS SET | - | |
| 12 | 46 63 2 303 924 | DRILLING TEMPLATE | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
