Parts List (32)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 2 311 724 | PIN - 298MM | - | |
71 60 9 024 190 | new part numberAlternative for position 1 | - | ||
46 71 2 311 725 | PIN - 315MMAlternative for position 1 | - | ||
| 2 | 46 71 2 311 724 | PIN - 298MM | - | |
71 60 9 024 190 | new part numberAlternative for position 2 | - | ||
| 3 | 46 71 2 311 726 | SPACER | - | |
| 5 | 07 11 9 936 442 | WASHER - 13-140 HV-ZN | - | |
| 6 | 07 11 9 922 940 | HEX NUT - M12X1,5 | - | |
| 7 | 46 71 1 451 573 | FOOTREST, LEFT | - | |
46 71 1 451 574 | FOOTREST, RIGHTAlternative for position 7 | - | ||
| 8 | 46 71 1 451 397 | FOOTREST RUBBER LEFT | - | |
46 71 1 451 398 | FOOTREST RUBBER RIGHTAlternative for position 8 | - | ||
| 9 | 46 71 1 450 948 | SLEEVE | - | |
| 10 | 46 71 1 451 575 | SPRING - LEFT | - | |
46 71 1 451 576 | SPRING - RIGHTAlternative for position 10 | - | ||
| 11 | 46 71 2 302 040 | HEX BOLT - M8X55 | - | |
| 12 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | - | |
| 13 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 14 | 46 71 1 454 887 | BUSHING | - | |
| 15 | 46 71 1 454 388 | WASHER | - | |
| 16 | 46 71 1 454 535 | FOOTREST, REAR LEFT | - | |
46 71 1 454 536 | FOOTREST, REAR RIGHTAlternative for position 16 | - | ||
| 17 | 07 11 9 905 230 | SPLIT PIN - 2X16 | - | |
| 18 | 07 14 9 180 923 | WASHER - 8,4X18X2MM | - | |
| 19 | 07 11 9 901 169 | HEX BOLT - M10X45-8.8-ZNS3 | - | |
07 11 9 901 164 | HEX BOLT - M10X25-8.8-ZNSAlternative for position 19 | - | ||
| 20 | 46 71 1 457 390 | SUPPORTING BRACKET | - | |
| 21 | 46 71 7 717 831 | PIN - D=8MM/L=36MM | - | |
| 22 | 46 71 1 457 392 | STOPPER | - | |
| 23 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 | - | |
| 24 | 07 11 9 915 558 | HEX NUT - M10-8-ZNS | - | |
| 25 | 07 11 9 906 063 | WASHER - 12-200 HV-ZNS3 | - |

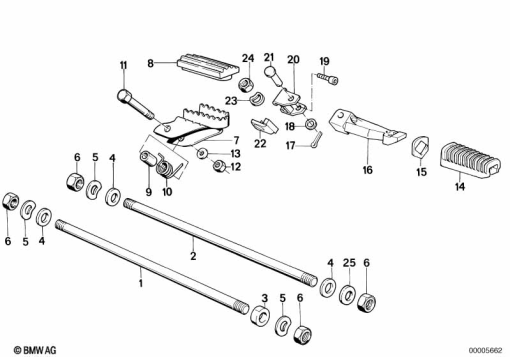

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
