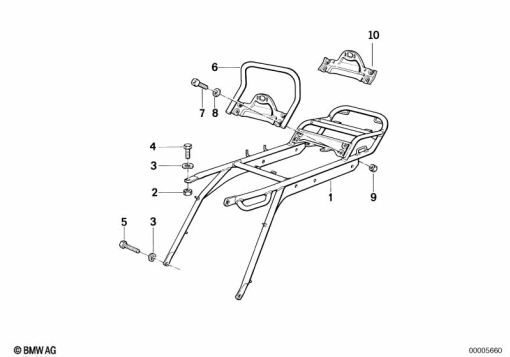

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 1 457 477 | REAR FRAME BLACK | 1 | |
| 2 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 | 1 | |
| 3 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | 1 | |
| 4 | 07 11 9 906 181 | HEX BOLT - M8X25-8.8-ZNNIV | 1 | |
| 5 | 07 11 9 902 901 | HEX BOLT - M8X30-8.8-ZNS3 | 1 | |
| 6 | 46 51 1 457 491 | HANDLE - BLACK | 1 | |
| 7 | 46 51 2 311 713 | FILLISTER HEAD WITH WASHER - M6X16 | 1 | |
| 8 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 9 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | 1 |
