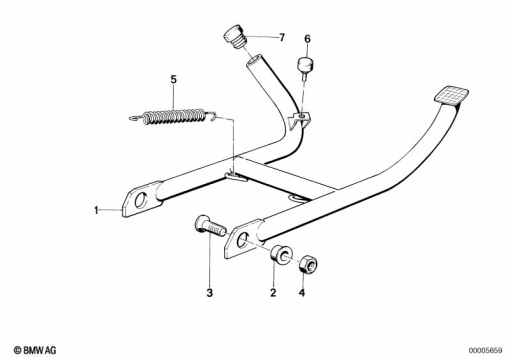

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 52 1 457 833 | CENTER STAND | - | |
46 52 2 316 347 | CENTER STAND F LOW EXHAUST SYSTEMAlternative for position 1 | - | ||
| 2 | 18 21 2 316 348 | BUSH FOR LOW EXHAUST SYSTEM - 10MM | - | |
46 52 2 301 704 | BUSH - 13,5MMAlternative for position 2 | - | ||
| 3 | 07 11 9 900 826 | COUNTERSUNK HEAD SCREW - M10X30 | - | |
| 4 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 | - | |
| 5 | 46 52 2 301 583 | TENSION SPRING - L=143MM | - | |
46 52 2 331 805 | TENSION SPRING - L=111MMAlternative for position 5 | - | ||
| 6 | 52 53 1 236 128 | BUMP STOP - H=10 | - | |
| 7 | 46 52 1 236 522 | 28.66 | - |
