R100GS (47E1) | Frame, Fairing, Cases

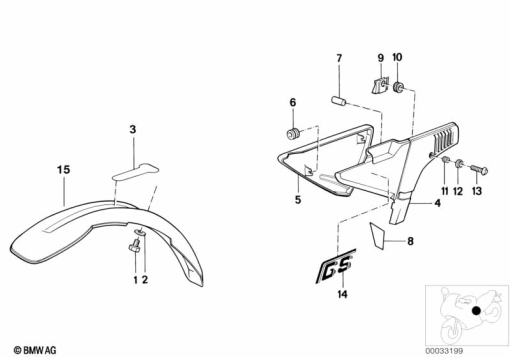

MUDGUARD FRONT-BATTERY COVER
Diagram #46_0166 | 14 parts | 3 available in shop
100%
Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 913 231 | HEX BOLT - M5X12-8.8 ZN | 1 | |
| 2 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 3 | 46 61 1 244 578 | FOIL | 1 | |
| 4 | 46 63 1 455 497 | BATTERY COVER LEFT PRIME COATED | 1 | |
| 5 | 46 63 1 455 478 | BATTERY COVER RIGHT PRIME COATED | 1 | |
| 6 | 46 63 1 452 400 | GROMMET | 1 | |
| 6 | 46 63 2 307 133 | GROMMET | 1 | |
| 7 | 46 63 1 456 098 | BUMP STOP | 1 | |
| 9 | 61 13 1 372 033 | BODY NUT - M5 | 1 | |
| 10 | 07 14 7 267 586 | RUBBER GROMMET | 1 | |
| 11 | 31 42 1 236 241 | BUSH | 1 | |
| 12 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 13 | 46 63 2 313 096 | FILLISTER HEAD SCREW - M5X16 | 1 | |
| 15 | 46 61 1 455 498 | MUDGUARD FRONT PRIME COATED | 1 |
