R100GS (47E1) | Frame, Fairing, Cases

FRONT FRAME

Diagram #46_0163 | 5 parts

100%

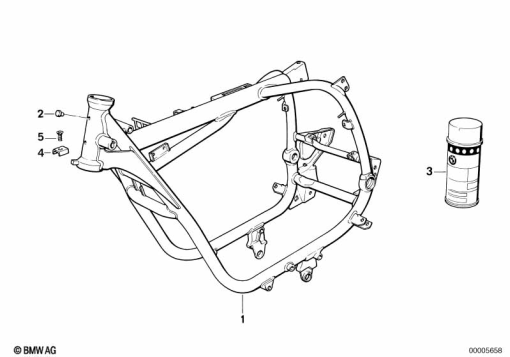

R100GS (47E1) FRONT FRAME exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
46 51 1 452 605
FRONT FRAME BLACK1
2
41 35 5 780 222
BLIND PLUG1
3
51 91 1 900 346
SPRAY BLACK MATT - 400ML1
4
46 51 2 300 024
0.011
5
07 11 9 918 407
SELF TAPPING SCREW - AM5X101
