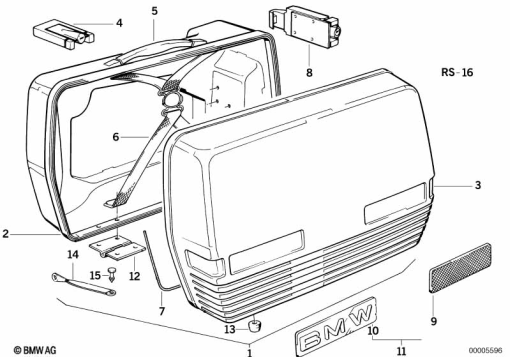

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 2 315 186 | SET: SET TOURING CASE | - | |
46 54 2 315 184 | TOURING CASE RIGHT - 33L (from 04/89)Alternative for position 1 | - | ||
46 54 2 315 187 | TOURING CASE LEFT - 27L (from 04/89)Alternative for position 1 | - | ||
46 54 2 315 183 | TOURING CASE LEFT - 33L (from 04/89)Alternative for position 1 | - | ||
| - | 18 12 2 316 364 | SET: SET OF ADD-ON PARTS, SILENCER (from 04/89) | - | |
| 2 | 46 54 1 239 499 | HOUSING BOTTOM LEFT | - | |
46 54 1 237 991 | HOUSING BOTTOM RIGHT (from 04/89)Alternative for position 2 | - | ||
| 3 | 46 54 1 237 992 | COVER | - | |
| 4 | 46 54 2 303 821 | LOCK (from 04/89) | - | |
| 5 | 46 54 2 300 013 | HANDLE (from 04/89) | - | |
| 6 | 46 54 2 300 015 | RUBBER BAND (from 04/89) | - | |
| 7 | 46 54 2 300 016 | GASKET (from 04/89) | - | |
| 8 | 46 54 2 315 320 | CASE SUSPENSION CATCH (from 04/89) | - | |
| 9 | 63 14 1 244 529 | SIDE REFLECTOR, YELLOW, FRONT | - | |
63 14 1 239 457 | SIDE REFLECTOR FRONT - REDAlternative for position 9 | - | ||
| 10 | 46 54 1 239 455 | EMBLEM - "BMW" | - | |
| 11 | 46 54 9 055 647 | SET: INSTALLING SIDE MARKING LIGHT - YELLOW | - | |
46 54 9 055 648 | SET: INSTALLING SIDE MARKING LIGHT - REDAlternative for position 11 | - | ||
| 12 | 46 54 2 300 018 | HINGE (from 04/89) | - | |
| 13 | 46 54 2 300 017 | PAD (from 04/89) | - | |
| 14 | 46 54 2 300 441 | HOLDING STRAP - L=180MM (from 04/89) | - | |
| 15 | 51 16 1 828 956 | PIN (from 04/89) | - | |
| 16 | 46 54 9 057 696 | SET: SET RIVET | - |
